Binc::PacketCombination Class Reference
[Binary Vectors]

#include <packet-combination.h>

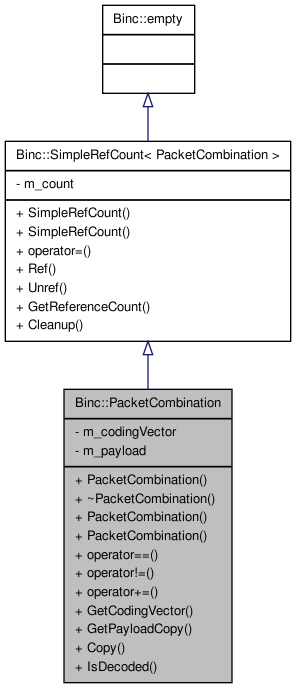

Inheritance diagram for Binc::PacketCombination:

[legend]

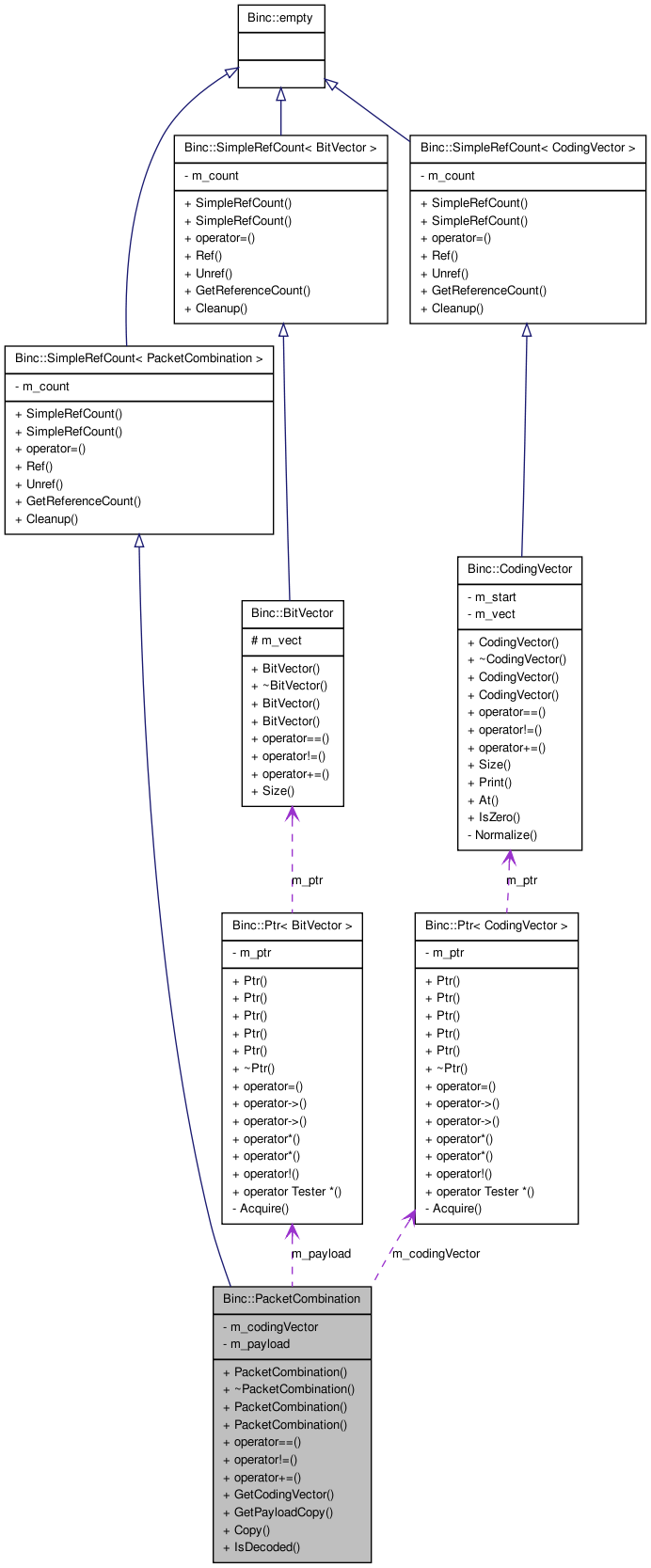

Collaboration diagram for Binc::PacketCombination:

[legend]

List of all members.

Public Member Functions
	PacketCombination ()
virtual	~PacketCombination ()
	PacketCombination (const PacketCombination &c)
	PacketCombination (Ptr< CodingVector > codingVector, Ptr< BitVector > payload)
bool	operator== (const PacketCombination &rhs) const
bool	operator!= (const PacketCombination &rhs) const
PacketCombination &	operator+= (const PacketCombination &rhs)
Ptr< CodingVector >	GetCodingVector () const
Ptr< BitVector >	GetPayloadCopy () const
Ptr< PacketCombination >	Copy () const
bool	IsDecoded (unsigned int pos)
Friends
PacketCombination	operator+ (const PacketCombination &lhs, const PacketCombination &rhs)
std::ostream &	operator<< (std::ostream &os, const PacketCombination &v)

---

Detailed Description

This class implements a coded packet using a CodingVector for the coding vector and and a BitVector for the payload.

---

Constructor & Destructor Documentation

Binc::PacketCombination::PacketCombination

(

)

default constructor

Binc::PacketCombination::~PacketCombination

(

)

[virtual]

virtual destructor needed by SimpleRefCount

Binc::PacketCombination::PacketCombination

(

const PacketCombination &

c

)

copy constructor

Parameters:

c

the PacketCombination to copy

Binc::PacketCombination::PacketCombination	(	Ptr< CodingVector >	codingVector,
		Ptr< BitVector >	payload
	)

Create a Packet Combination with the given coding vector and payload

Parameters:

	codingVector	the coding vector
	payload	the payload

---

Member Function Documentation

Ptr< PacketCombination > Binc::PacketCombination::Copy

(

)

const

Returns:

a copy of this PacketCombination

Ptr< CodingVector > Binc::PacketCombination::GetCodingVector

(

)

const

Returns:

a const reference to the embedded CodingVector

Ptr< BitVector > Binc::PacketCombination::GetPayloadCopy

(

)

const

Returns:

a Ptr to a newly created copy of the payload

bool Binc::PacketCombination::IsDecoded

(

unsigned int

pos

)

check if the PacketCombination is decoded, i.e., if the cofficients of the coding vector are all zero except for the one at position pos which is equal to one.

Parameters:

pos

the position of the only non-zero coefficient of the coding vector.

Returns:

true if the PacketCombination is decoded, false otherwise.

bool Binc::PacketCombination::operator!=

(

const PacketCombination &

rhs

)

const

Parameters:

rhs

the Right Hand Side

Returns:

true if the PacketCombinations differ in coding vector or payload, false otherwise

PacketCombination & Binc::PacketCombination::operator+=

(

const PacketCombination &

rhs

)

Add the Right Hand Side of the operator to *this, bit by bit. Since we work over the GF2 (binary) field, this is equivalent to the bit by bit XOR operation.

Parameters:

rhs

the Right Hand Side

Returns:

a reference to *this

bool Binc::PacketCombination::operator==

(

const PacketCombination &

rhs

)

const

Parameters:

rhs

the Right Hand Side

Returns:

true if the PacketCombinations are identical (same payload and coding vector), false otherwise

---

Friends And Related Function Documentation

PacketCombination operator+	(	const PacketCombination &	lhs,
		const PacketCombination &	rhs
	)			[friend]

bitwise addition operator. Since we work over the GF2 (binary) field, this is equivalent to the bit by bit XOR operation.

Parameters:

	lhs	Left Hand Side of the operator
	rhs	Right Hand Side of the operator

Returns:

the value of lhs + rhs

std::ostream& operator<<	(	std::ostream &	os,
		const PacketCombination &	v
	)			[friend]

print a PacketCombination

Parameters:

	os	the output stream
	v	the PacketCombination to be printed

Returns:

a reference to the output stream

---

The documentation for this class was generated from the following files:

• src/packet-combination.h
• src/packet-combination.cc
